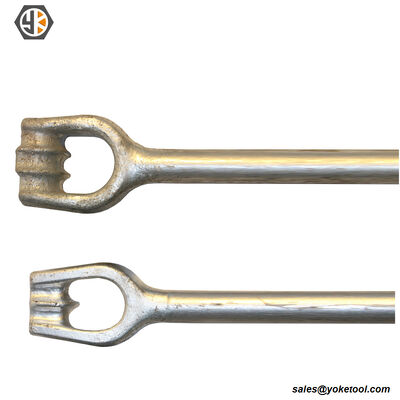

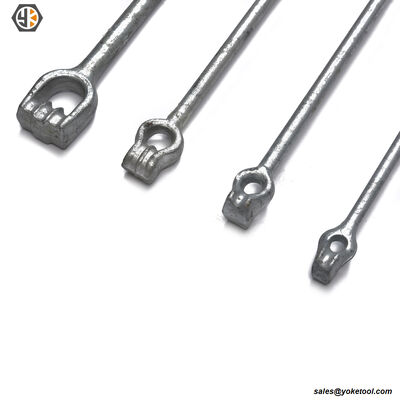

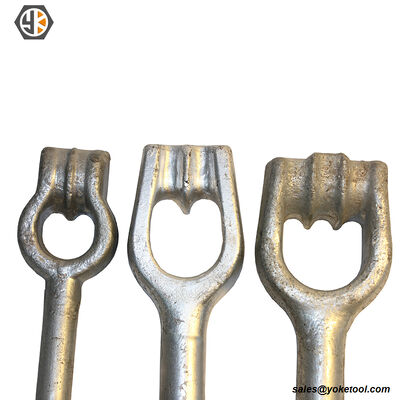

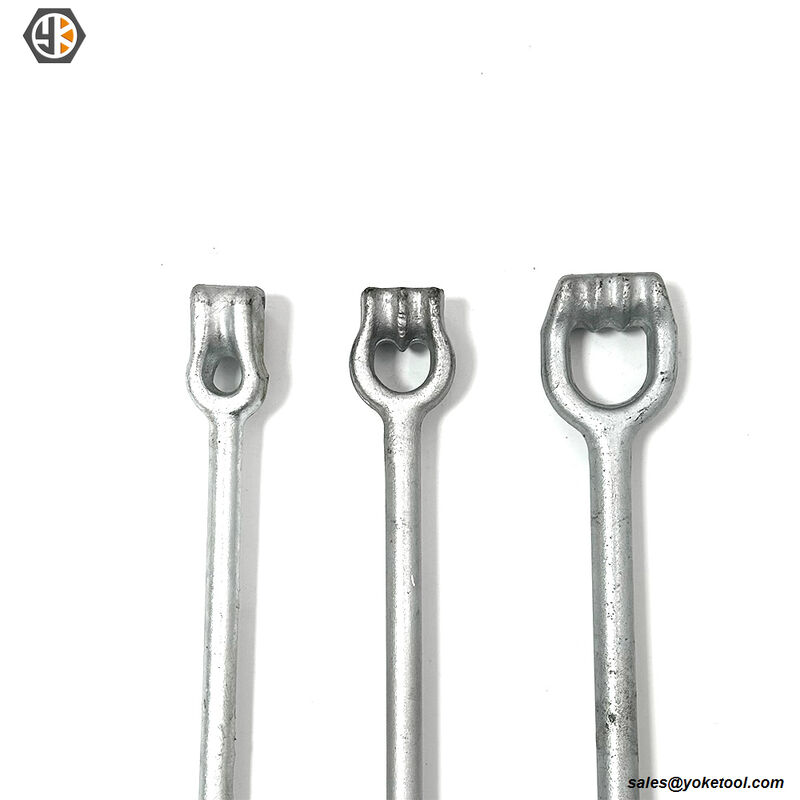

Name: ASTM F1554 Grade105 Anchor Rod Galvanized With DH Nut Washer
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 3.50 USD
Availability: InStock

Inicio Productos Construcción y elementos de fijación estructurales

ASTM F1554 Grade105 Anchor Rod Galvanized With DH Nut Washer

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Yokelink
Certificación:	ASTM F1554

Pago y Envío Términos:

Cantidad de orden mínima:	500
Precio:	$1.5~$6.9
Detalles de empaquetado:	Cartón y plataforma
Condiciones de pago:	T/T

Contactar ahora

Descripción detallada del producto

Nombre del producto:	Varilla de anclaje ASTM F1554	Calificación:	Grado 36, Grado 55, Grado 105
Refinamiento:	galvanizado en caliente	Tipo de forma:	Tipo recto/tipo L/J
Hilo:	Rosca completa/extremo doble/extremo único	Material:	Acero al carbono / acero aleado

ASTM F1554 Grade 36 55 105 Anchor Rods

ASTM F1554 is a standard specification for anchor bolts that are designed to be used in structural applications. These bolts are typically used to secure steel structures to concrete or masonry foundations. The F1554 specification covers three grades of anchor bolts: Grade 36, Grade 55, and Grade 105.

Grade 36 anchor bolts are made from low carbon steel and are commonly used in light-duty applications such as residential Construction. Grade 55 anchor bolts are made from medium carbon steel and are used in more demanding applications such as commercial or industrial construction. Grade 105 anchor bolts are made from heat-treated medium carbon Alloy Steel and are used in the most demanding applications such as high-rise buildings or bridges.

ASTM F1554 Anchor Rods Features:

Grade: Grade 36 ,Grade 55, Grade 105
Material: Carbon Steel / Alloy Steel
Thread Type: Full Threaded / Double End /Single End
Rod Type: Straight Type / L/J Type

F1554 Grade 36	Low carbon, 36 ksi yield steel anchor bolts
F1554 Grade 55	High strength, low alloy, 55 ksi yield steel anchor bolts
F1554 Grade 105	Alloy, heat treated, high strength 105 ksi yield steel anchor bolts

Product Identification and Marking

The end of each anchor bolt intended to project from the concrete requires a color code to identify the grade as follows:

Permanent manufacturer’s identification markings (Supplementary Requirement S2) and/or permanent grade identification markings (Supplementary Requirement S3) can be specified on the inquiry and purchase order. However, only color coding is required. When one or both of the supplementary requirements are specified, the end of the anchor bolt intended to project from the concrete shall be steel die stamped. Grade identification markings are as follows:

ASTM F1554 Anchor Rods Specifications

When you need ASTM F1554 Anchor Bolts or Anchor Rods, refer to above our catalog. We offer them in a full selection of sizes. Provide the length, diameter or part number. Our ASTM F1554 Anchor Bolts are available plain or with Hot dip galvanized( HDG ) finish. To get a quote on these anchor bolts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.

ASTM F1554 Grade105 Anchor Rod Galvanized With DH Nut Washer
