Name: ASTM F3125 Grade A325 A325M Type 1 Structural Hexagonal Bolt
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 1.50 USD
Availability: InStock

Inicio Productos Construcción y elementos de fijación estructurales

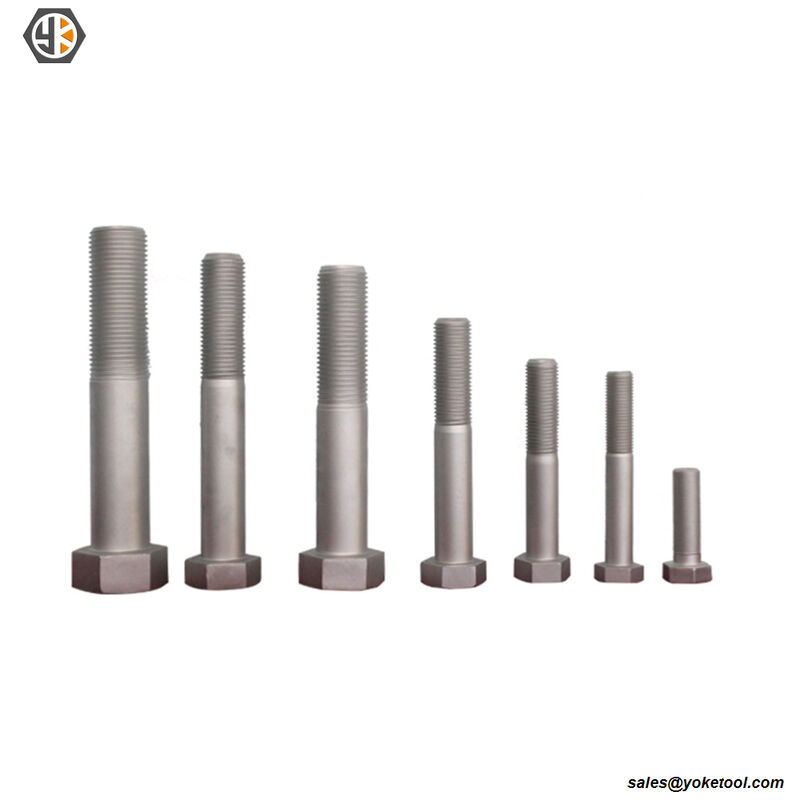

ASTM F3125 Grade A325 A325M Type 1 Structural Hexagonal Bolt

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Yokelink

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	$0.5~$2.5
Detalles de empaquetado:	cartón y paleta
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	100000 unidades por mes

Contactar ahora

Descripción detallada del producto

ASTM A325 Hex Structural Bolts

ASTM A325 Structural Bolts are a specialized heavy type of Hex Bolt intended for use in large structures, such as

buildings and bridges. This bolt is designed to withstand the loads of steel-to-steel structural connections. They contain a flat, washer-faced bearing surface and a chamfered thread point. Galvanized plating protects the bolt from corrosion; typically used in outdoor applications.

There are different types of Astm F3125 Grade A325 Bolts such as the type 1, 2, 3, T and M. The type 2 is withdrawn and obsolete but the others have different properties and are in use. Each of these bolts also has different connections types as well. The A325 Bolts type 3 bolts are made up of weathering steels. The weathering steel made bolts don’t need coating as the surface become oxidized and the patina acts as a coating against corrosion.

The Astm a325 type 1 bolts are made of medium carbon, carbon boron or medium carbon alloy steels. These bolts have high toughness as well. But they can be used with different types of coating for corrosion resistance.

Astm A325 Hex Structural Bolt Features:

Material	Steel
Type	Heavy Hex Structural Bolt Assembly
Grade	A325 Type 1
Finish	Hot Dip Galvanized
Head Type	Hex
Thread Style	Coarse
Standards	ASME B18.2.6, F3125/F3125M, ASTM A563, A153/A153M or F2329/F2329M

Hot Forging A325 Structural Bolt
We make Hot Forming/ Forged Bolts through the Screw forging and Hot Head Forging Machines.
The Hot Forming mostly done for Bolts having bigger diameter, longer length or special Head shape...

ASTM F3125 Grade A325 A325M Type 1 Structural Hexagonal Bolt

The Application of ASTM A325 Structual Bolt

A325 bolts are ASTM-standard high-strength steel structural bolts (tensile strength ≥827 MPa). They are primarily used in high shear, tensile, and combined load scenarios and are primarily used in steel structure engineering.

Specific applications include critical connections in high-rise/long-span building steel frames, highway and railway bridges, heavy equipment foundations, and transmission towers. They are capable of withstanding dynamic loads and impacts.

Special nuts and washers must be used and tightened according to specifications. For outdoor use, choose hot-dip galvanized bolts for corrosion resistance. These bolts are roughly equivalent to GB grade 10.9 and cannot be substituted with ordinary bolts.

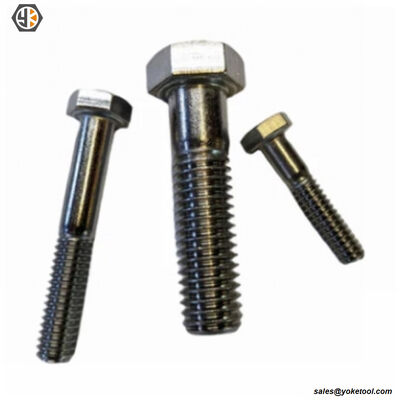

ASTM F3125 Grade A325 Hot Dipped Galvanized Steel Structural Bolt

Yokelink ASTM A325 Structual Bolts are a specialized heavy type of Hex Bolt intended for use in large structures, such as buildings and bridges. This bolt is designed to withstand the loads of steel-to-steel structural connections. They contain a flat, washer-faced bearing surface and a chamfered thread point. Galvanized plating protects the bolt from corrosion; typically used in outdoor applications.

ASTM F3125 Grade A325 A325M Type 1 Structural Hexagonal Bolt

Buy ASTM A325 Structual Bolt From Yokelink

ASTM A325 was replaced by ASTM F3125 in year 2016, which A325 now becomes a grade under the F3125 specification. When you need A325 Structural Bolts, refer to above our catalog. We offer them in a full selection of sizes. Provide the length, diameter or part number. Our ASTM A325 Structural Bolts are available plain or with Hot dip galvanized ( HDG ) finish. To get a quote on these bolts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.

Contacto

Ningbo Yokelink Machinery Co.,Limited

Persona de Contacto: Mr. Tony

Teléfono: 86-574-86882908
