Name: Trefoil Cable Cleat Aluminum M8 Mounting CCAL1H3238-X
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 5.50 USD
Availability: InStock

Inicio Productos Clavos y accesorios para cables

Trefoil Cable Cleat Aluminum M8 Mounting CCAL1H3238-X

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Yokelink

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	$5.5~$6.5
Detalles de empaquetado:	cartón y paleta
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	10000 unidades por mes

Contactar ahora

Descripción detallada del producto

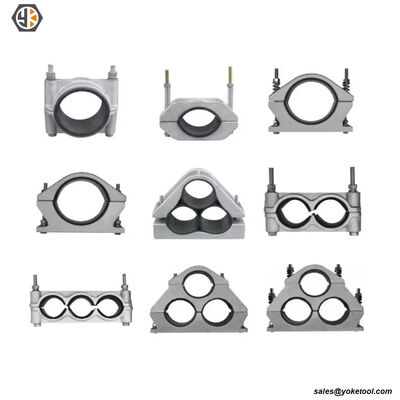

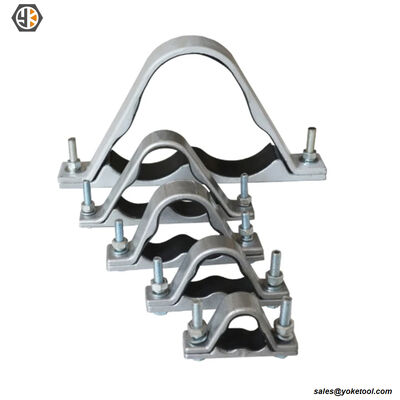

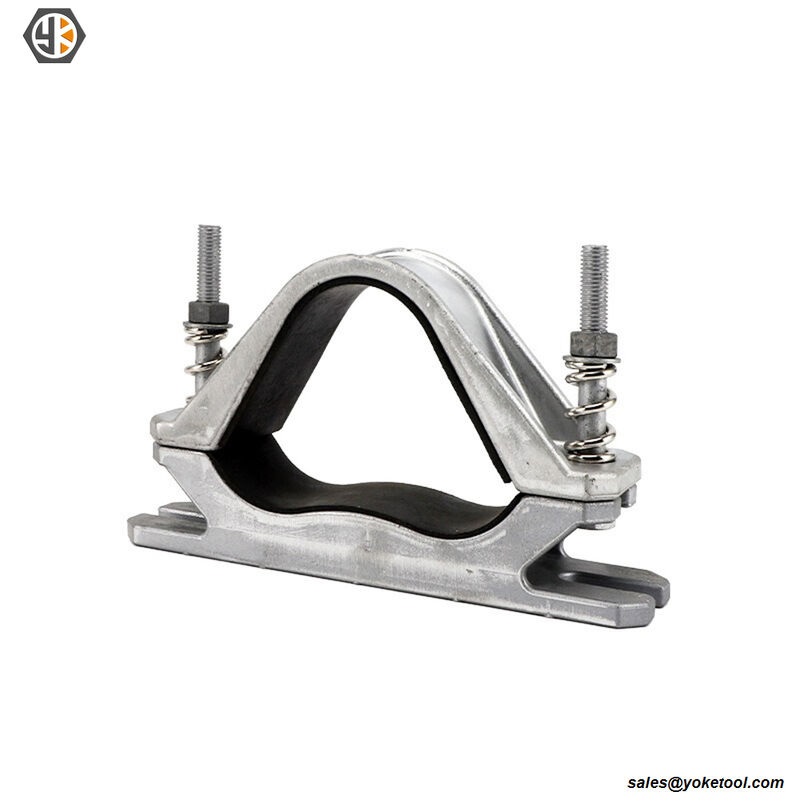

CCAL1H3238-X Trefoil Cable Cleat Aluminum M8 Mounting

Yokelink aluminum trefoil cable cleat is a device for fixing and supporting cables, especially suitable for three - phase cables arranged in a trefoil shape. Aluminum trefoil cable cleat made of high - strength anti - corrosion aluminum alloy, Aluminum trefoil cable cleat has the characteristics of corrosion resistance and rust prevention. Aluminum trefoil cable cleat can maintain the optimal spacing of the three cables, reduce the impact of electromagnetic force, and is easy to install. Aluminum trefoil cable cleat is widely used in power, communication and other fields, which can ensure the stability and safety of cable layout.

Aluminum trefoil cable cleat/ CCAL1H3238-X Cable Cleat Features:

• Cleats comply with IEC 61914:2015 standard. Tested at third party laboratory

• Cast aluminum material

• Operating temperature -40°C to +120°C (-40°F to +248°F)

• 23 – 75 mm cable diameter range-taking via 14 parts. Custom sizes available upon request

• Single bolt fixing (M8) or mounting bracket fixing provides installation flexibility

• Tightening bolt includes nylon insert lock nut for vibration dampening

• Rounded aluminum edges for cable insulation protection

• Ridges help hold cable in place

• Available insulating spacers and washers

Aluminum trefoil cable cleat/ CCAL1H3238-X Cable Cleat Specification

Aluminium Cable Cleats Short Circuit Testing Summary

Aluminium cable cleats undergo rigorous short circuit testing to validate their ability to withstand extreme electromagnetic forces during faults.Aluminium cable cleats tests simulate peak short-circuit currents (often 30kA to 100kA+) over specified durations, measuring cleat integrity, cable displacement, and clamping retention. Aluminium cable cleats key metrics include resistance to deformation, maintenance of cable spacing, and absence of cracks. Compliance with standards like IEC 61914 is critical, ensuring cleats retain cables securely without failure. Testing summaries verify short-circuit withstand capacity, guiding proper selection for safe, reliable cable installations.

Buy Aluminium Cable Cleats From Yokelink

Choose yokelink aluminum cable cleats to protect the line safety! Made of high-strength aluminum alloy forging, Yokelink aluminum cable cleats is corrosion-resistant, high and low temperature resistant, and rock-solid in -60℃ to 100℃ environments. After rigorous short-circuit testing, it can withstand peak currents exceeding 70kA, does not loosen or deform under strong electromagnetic force, and firmly locks the cable. The lightweight design saves time and effort for installation, and is suitable for cables of multiple specifications, covering all scenarios from low voltage to high voltage. It complies with IEC 61914 standards and has reliable quality. Using it, the cable protection is as stable as Mount Tai, making the circuit safe and secure. It is a safe choice for power engineering!
