Name: Stainless Steel Standardized Shaft Collar Adjusting Ring DIN 705 Shaft Locking Collar
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 1.50 USD
Availability: InStock

Inicio Productos Accesorios mecánicos

Stainless Steel Standardized Shaft Collar Adjusting Ring DIN 705 Shaft Locking Collar

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Yokelink

Pago y Envío Términos:

Cantidad de orden mínima:	500 piezas
Precio:	$0.5~$2.5
Detalles de empaquetado:	cartón y paleta
Tiempo de entrega:	40 días
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	100000 unidades por mes

Contactar ahora

Descripción detallada del producto

Material:	Aluminio, acero inoxidable, acero al carbono	Finalizar:	Revestimiento de zinc, óxido negro
tamaño métrico:	De 5 mm a 60 mm	Tamaño de la pulgada:	3/16" a 4"

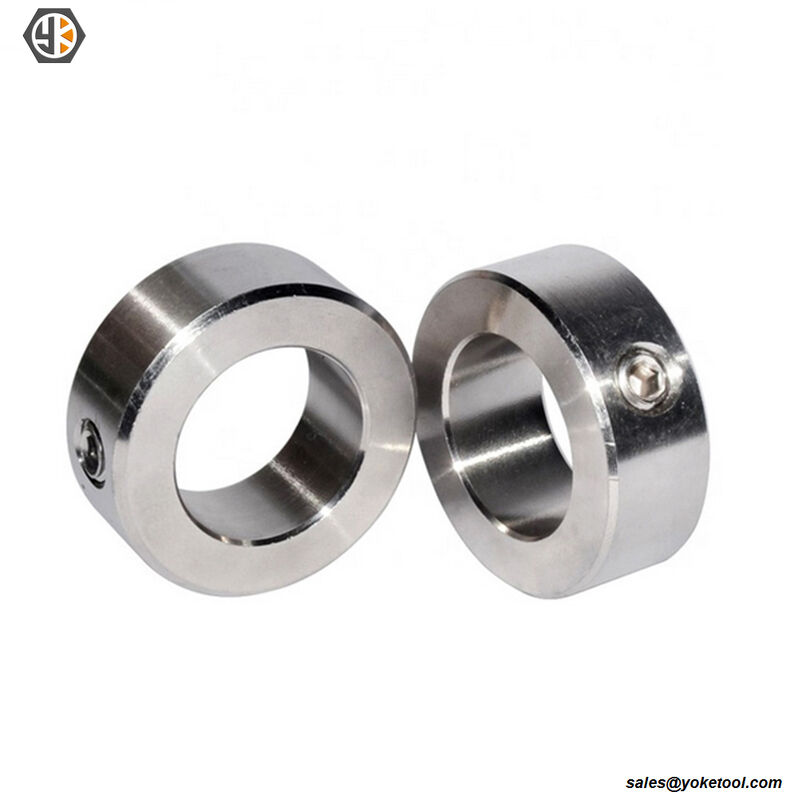

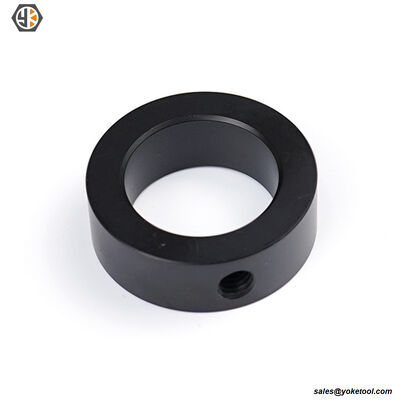

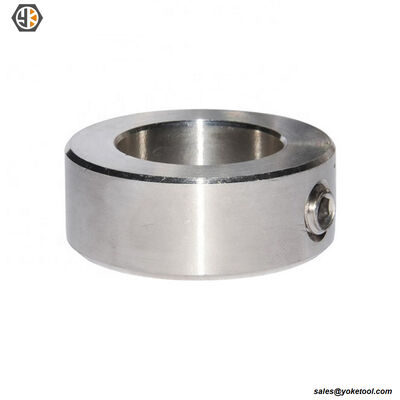

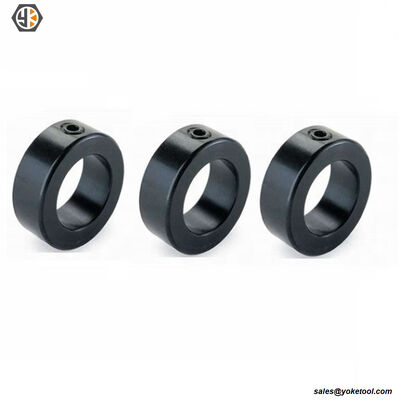

Stainless Steel Standardized Shaft Collar Adjusting Ring DIN 705 Shaft Locking Collar

Shaft collars are mostly circular ring structures, adaptable to various shaft specifications. Materials include carbon steel, stainless steel, and aluminum alloy, with surfaces treated with galvanizing and blackening for rust prevention, making them corrosion-resistant and wear-resistant. They are available in set screw and clamping types; the set screw type is secured with a screw, while the clamping type avoids shaft damage and is easy to install and disassemble without complex tools. They offer precise positioning and secure locking, preventing shaft movement and providing axial positioning, limiting, and separation functions. Suitable for motors, mechanical transmissions, and automated equipment, they offer strong adaptability and ensure stable transmission.

Din705 Shaft Collar Features:

Compliant with DIN standards, available in A/B/C versions

Set screw/pin locking, high holding force

Carbon steel/stainless steel construction, rust-proof treatment

Compact ring structure, suitable for narrow spaces

Multiple sizes available, precise and stable positioning

Prevents shaft movement, compatible with transmission equipment

Application of DIN705 Shaft Collars

1.Automotive Industry

Used for attaching components like gears or pulleys to the drive shaft, ensuring secure and reliable connections.

2.Machinery Manufacturing

Useful for rotating securing parts, such as bearings or couplings, to the shaft, maintaining precision and stability during

operation.

3.Motor and Flange Applications

Suitable for limiting the range of travel allowed along a shaft, providing a secure and adjustable connection.

4.Industrial Equipment

Ideal for applications where high torque transmission and precise positioning are required, such as in pumps or compressors.

5.Power Transmission Systems

Effective in transferring rotational force accurately, ensuring smooth and efficient operation.

Specification of DIN705 Shaft Collar

Buy Shaft Collar from Yokelink

Shaft Collar, the preferred choice for industrial transmissions! Available in carbon steel, stainless steel, and other materials, all hardened and rust-proofed for wear and corrosion resistance. Compatible with various shafts, providing precise positioning, vibration reduction, and noise reduction, effectively extending equipment life. Easy to install, suitable for motors, automated equipment, and various other applications. Bulk purchases enjoy discounts—order now!
