Name: 3/4" Oval Eye Bolt HDG IEEE C135.1 & CSA C83 SEC Compliant Poleline Fastener
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 1.50 USD
Availability: InStock

Inicio Productos Accesorios para el acoplamiento en línea

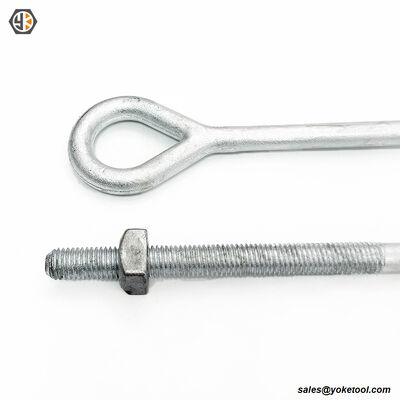

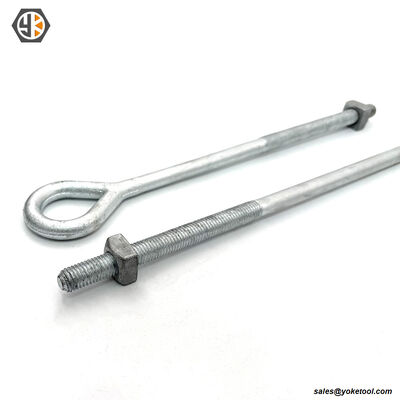

3/4" Oval Eye Bolt HDG IEEE C135.1 & CSA C83 SEC Compliant Poleline Fastener

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Yokelink

Pago y Envío Términos:

Cantidad de orden mínima:	500 piezas
Precio:	$0.5~$2.5
Detalles de empaquetado:	cartón y paleta
Tiempo de entrega:	40 días
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	100000 unidades por mes

Contactar ahora

Descripción detallada del producto

Tratamiento superficial:	Galvanizado en caliente (ASTM A153 Clase C)	Tipo de hilo:	Hilos Laminados UNC (Clase 2A)
Material:	Acero al carbono forjado (ASTM A153)	Resistencia a la tracción:	18,350 libras
Configuración de tuerca:	Tuerca cuadrada ensamblada	Tipo de punto:	Punto de cono
Forma de los ojos:	Ojo ovalado (apertura de 1-1/2" x 2")	Especificación:	IEEE C135.80/CSA C83
Origen:	Fábrica de Yokelink (China)

3/4" Oval Eye Bolt HDG IEEE C135.1 & CSA C83 SEC Compliant Poleline Fastener

Yokelink 5/8" Oval Eye Bolts are widely used for securing guying strands and dead-end insulators to utility poles. Unlike welded alternatives, our eye bolts are Drop Forged from a single piece of high-grade steel, ensuring structural integrity and superior fatigue resistance.

Standard Dimensions: Featuring a standard 1-1/2" x 2" Oval Eye opening, these bolts easily accommodate heavy-duty hooks, clevises, and guy grips. Manufactured to IEEE C135.80 specifications with a minimum tensile strength of 12,400 lbs .

304 & 316 Stainless Steel Oval Eye Bolts are available per the request...

Oval Eye Bolt Key Features :

Process: Drop Forged (One-piece construction).
Eye Shape: Standard Oval Eye (1-1/2" x 2").
Thread: Rolled threads with Cone Point for easy driving.
Assembly: Includes 1 Square Nut.
Finish: Hot Dip Galvanized to ASTM A153.

Oval Eye Bolt Factory Production Process

Oval eye bolts are made from ASTM A307 carbon steel. The oval eye head is formed by hot forging, followed by trimming, annealing and machining. Threads on the shank are processed by thread rolling to ensure precision. Heat treatment is carried out to meet mechanical properties. The bolts are then hot-dip galvanized in accordance with ASTM A153 for outdoor corrosion resistance. The whole production and inspection conform to IEEE C135.1 and IEEE C135.80, ensuring stable performance for overhead line applications.

Yokelink Quality Control and Testing Equipments

We don't just reference standards; we also verify them in practice: each batch of products undergoes destructive tensile testing in our internal laboratory to ensure load performance exceeds the minimum requirements of IEEE C135.1 / IEEE C138.80 or CSA specification; we use optical comparators to ensure the geometric accuracy of chamfered tips and rolled threads, enabling convenient on-site installation; at the same time, we conduct comprehensive testing on Rockwell hardness, coating thickness, and other parameters, and each shipment is accompanied by the original manufacturer's material specifications (MTRs) and quality inspection reports, with all data traceable back to the raw material furnace number.

Key Application Scenarios of Oval Eye Bolt:

-Used in overhead transmission and distribution lines

-Connects cross arms, pole hardware and guy wires

-Provides lifting, fixing and tensile support

-Applied in outdoor power line structures

-Ensures stable and safe operation of power systems

Yokelink Product Quality Inspection Report

We provide comprehensive inspection services for machine bolts, including SGS test bolts and formal Production Part Inspect Report (PPIR). The SGS tests verify the bolts’ compliance with international standards like ASTM A307 and IEEE C135.80, covering mechanical properties and corrosion resistance. The PPIR details all inspection items, ensuring each machine bolt meets dimensional, performance and quality requirements, providing reliable quality assurance for overhead line and industrial applications.

Technical Specifications of Oval Eye Bolt

3/4 Inch Diameter Minmum Tensile Strength 18,350 LBS

Part No.	Size	Bolt Length	Thread Length	Weight
Part No.	Size	Inch (A)	Inch (B)	Kg / Pcs
A0334-08	3/4"X8"	8	4	0.818
A0334-10	3/4"X10"	10	6	0.909
A0334-12	3/4"X12"	12	6	1.000
A0334-14	3/4"X14"	14	6	1.091
A0334-16	3/4"X16"	16	6	1.164
A0334-18	3/4"X18"	18	6	1.273

Cross Reference (Industry Equivalents):

Size	Part No.	HUBBELL	MACLEAN
Size	Part No.	HUBBELL	MACLEAN
3/4"X8"	A0334-08	29978	J9508
3/4"X10"	A0334-10	29980	J9510
3/4"X12"	A0334-12	29982	J9512
3/4"X14"	A0334-14	29984	J9514
3/4"X16"	A0334-16	29986	J9516
3/4"X18"	A0334-18	29988	J9518

(Note: Manufacturer part numbers are for reference only. Yokelink products are interchangeable based on IEEE standards.)

Frequently Asked Questions (FAQ)

1.Q:Can I use Yokelink poleline fasteners bolts to replace Hubbell or MacLean parts?

A: Yes. Our poleline hardware bolts are functionally equivalent and interchangeable with industry-standard part numbers such as the Hubbell 82xx series and MacLean J82xx series. They meet or exceed the same mechanical load ratings

2.Q: Do you provide Mill Test Reports (MTRs) ,Drawing, or Factory Inspection Reports?

A: Yes, transparency is our standard. Full Mill Test Reports, Galvanizing Certificates, and Factory Inspection Reports are available with every shipment upon request, traceable to the raw material heat number.

3.Q:What is the difference between an Oval Eye and a Thimble Eye Bolt?

A: An Oval Eye Bolt has a smooth, elliptical opening designed to attach clevises, links, or hooks. A Thimble Eye Bolt has a grooved eye specifically designed to seat and protect a guy wire strand directly, eliminating the need for a separate thimble.

4.Q: Are these bolts drop forged or welded?

A: All Yokelink Eye Bolts are Drop Forged. We do not use bent or welded eyes, as drop forging provides superior strength and eliminates the risk of the eye opening under heavy tension load.

Value-Added Supply Chain Services

1. Blanket Order & Free Warehousing
Yokelink offers Blanket Order programs: Place an annual order to lock prices, we manufacture your total volume and hold stock in our facility free of charge. Split Shipments: Schedule partial shipments (e.g., monthly or quarterly) based on your project progress. You get the benefits of just-in-time delivery without the risk of shortages.

2. DDP Shipping (USA Duties Included)Landed Cost Certainty: We handle the complex logistics. Our DDP (Delivered Duty Paid) service covers sea freight, US Customs clearance, and Section 301 tariffs. The price we quote is the final price delivered to your door / Warehouse.

3. Free Sample Program

We offer Free Samples to qualified commercial buyers for testing and approval.
